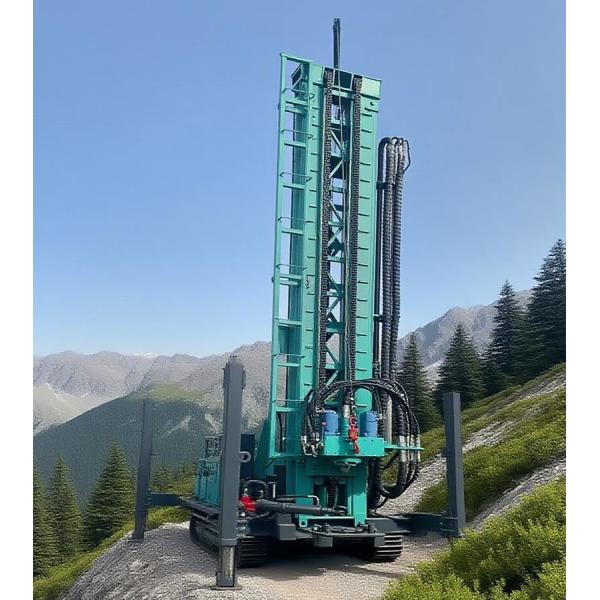

8900N.M Torque Deep Well Drilling Machine For Mountainous Areas

  • 1
  • 2

Brand Name : ShiTan

Model Number : ST300 Water well drill rig

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1set

Price : Negotiable

Payment Terms : T/T,D/A,Western Union

Supply Ability : 500sets/year

Delivery Time : 15-20days

Packaging Details : Standard export wooden box

Product Name : Crawler Mounted ST300 Large Drilling Rig

Hole Diameter : 105-305mm

Drilling Depths : Max 300 meters

Condition : New

Warranty : 12 months

Maximum turning torque : 8900

Origin : China

Contact Now

Highly Efficient and Versatile


Specialized for deepwater wells! This rig can drill up to 300 meters deep and covers hole diameters from 105 to 305 mm, easily meeting various requirements. Equipped with a top hydraulic drive and equipped with both down-the-hole hammer and mud drilling modes, it efficiently drills both unconsolidated and bedrock formations, achieving up to 35 meters per hour! Powered by a 78kW Yuchai engine, it offers powerful performance, a 30° gradeability, and flexible maneuverability. Its 8-ton deadweight delivers both strength and maneuverability, making it a reliable partner for your well drilling projects.


ST 300 Crawler Mounted Drill Rig Tech Parameter


Model ST 300
Max. Drilling Depth 300 meters
Hole Diameter Range 105 - 305 mm
Axial Feed Force 4 Tons
Engine Power Yuchai 78 KW
Footage Efficiency 10 - 35 m/h
Working Air Pressure 1.25 - 3.5 Mpa
High Leg Travel

1.35m
Climbing Ability 30
Chassis Type Crawler Mounted
Drill rod length 1.5m/3m/6m
Lifting Force 22T
Drilling Mode DTH & Mud
Weight

8000kg
Overall Dimension (LxWxH) 4.8m × 1.9m × 2.35m
Warranty 1 YEARS
Application Water well/deep water well/geothermal source pump well
Brand SHITAN
Origin Hebei Province, China


ST300 Crawler Mounted Drill Rig Advantages


  • Fast Machine Movement: A travel speed of 2.5 km/h allows for flexible and efficient on-site movement.
  • One-button Operation: Centralized hydraulic control makes operation simple and reduces learning curves.
  • Continuous Operation: A single 6-meter drill rod reduces rod connection and disconnection times, increasing drilling time.
  • Precise Control: The hydraulic system offers stepless speed regulation for precise control of drilling parameters.
  • Low Failure Rate: Utilizing proven hydraulic technology and high-quality components, the equipment is durable and maintains high uptime.


Please note that when drilling into soft formations, please choose root canal drilling.
